Product Description
Ex Display Model

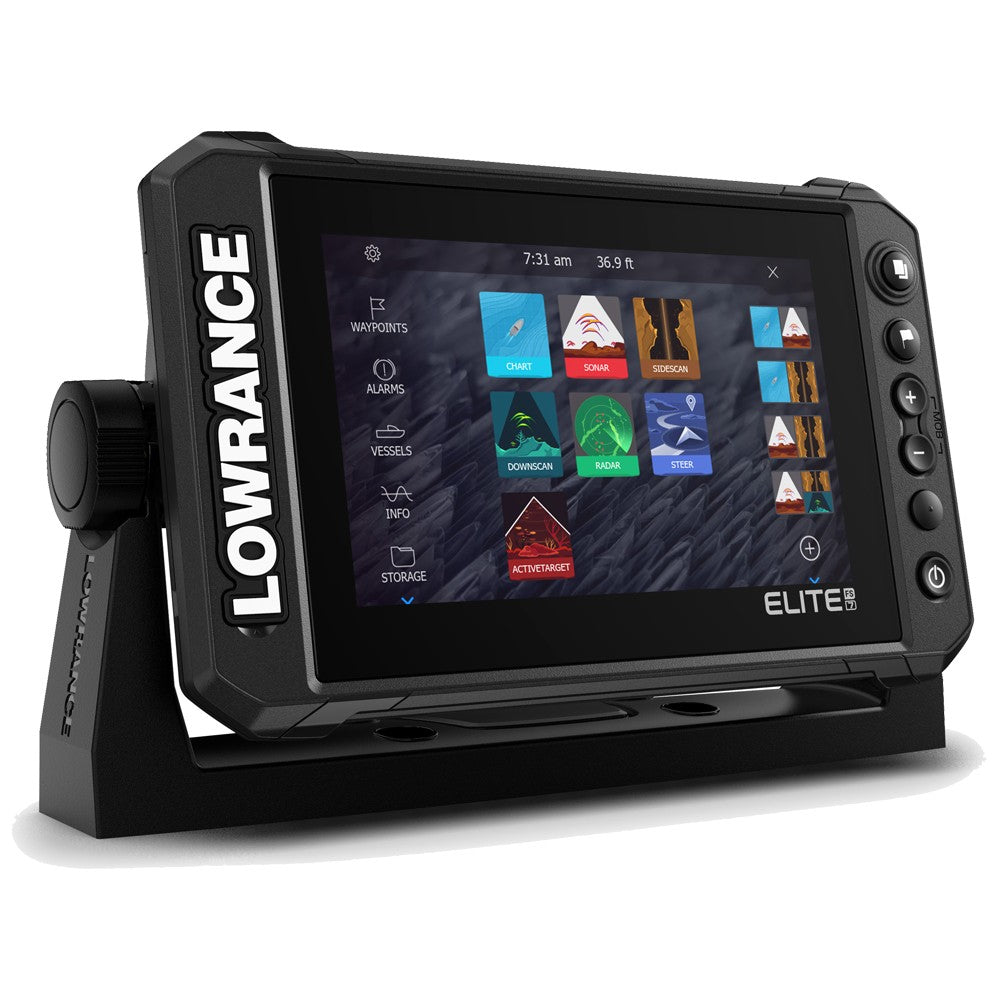

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to compatibility with a wide range of chart options, Elite FS gives you all the tools you need to find and catch more fish.
- CHIRP Sonar with FishReveal™
- ActiveTarget™ Live Sonar ready
- Active Imaging 3-in-1 ready
- FishReveal™
- C-MAP® Easy Routing, Navionics® Autorouting capability
- C-MAP® Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Radar compatible
- AIS compatible
Find More Fish with Proven Lowrance Sonar
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

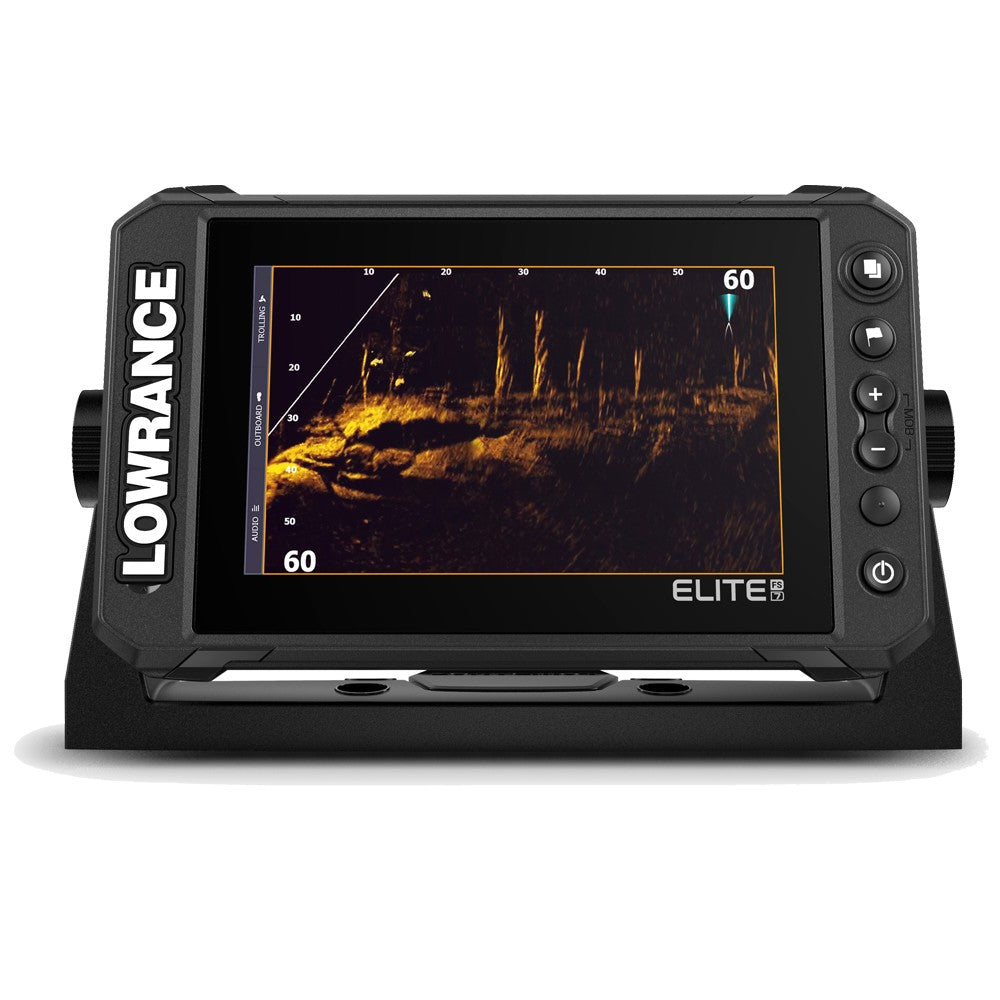

Target Fish Live with New ActiveTarget™ Live Sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.
Multitude of Chart Options
Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of chart options, including C-MAP®, Navionics® and more.
Specifications
- Cartography included: C-MAP ROW Basemap
- Cartography supported: C-MAP (MAX N, MAX N+, Reveal, Discoverer) & C-MAP Genesis: Navionics (Gold, NAV+ Platinum+)
- Resolution 800x480
- External Storage: 1 micro SD card up to 32GB
- Screen Brightness >1200 nits
- Size and Type 7.00" (178mm) WVGA color TFT LCD
- Viewing Angles 50° top60°bottom70° left/right
- Power Consumption, typical: 2.0A @ 13VDC with backlight on full
- Recommended Fuse Rating: 3A
- Supply Voltage: 12v DC (10.8-17VDC)
- Connections: NMEA 0183 (with optional Cable Sku 210107), NMEA 2000, Ethernet, Bluetooth, WiFi
- Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
- Mounting Type: Gimbal Bracket or Dash Flush Mount
- GPS Receiver Channels: 16
- GPS Position Accuracy: 20m
- GPS Time to First Fix: 30s
- GPS Update rate: 10 Hz
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Waterproof rating: IPX7 with card door closed
- Compass Safe Distance: 12" (300mm)
- Weight: 1.90 lbs (0.90 kg)
- Dimensions (on bracket & with cable in rear): 265.6W x 162.4 H x108.4D mm
- Dimensions (no bracket): 237.8W x 147.4H x 108.4D mm
