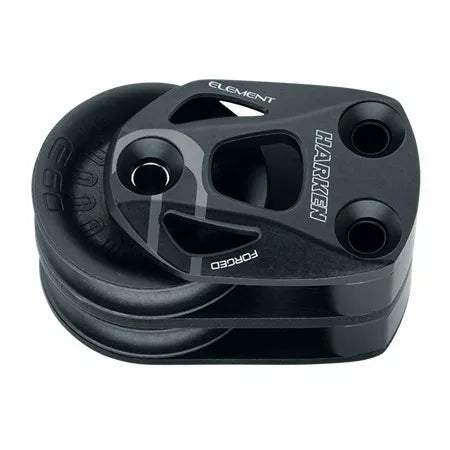

60mm Aluminum Element Double Footblock
We despatch all orders within 24 hours. Orders placed weekdays before 4pm will be shipped the same day.
Call us and speak to an expert on 0191 4297309 - (Mon - Fri / 9am - 5pm).
Pickup available at Marine Chandlery: North Shields
Usually ready in 1 hour
60mm Aluminum Element Double Footblock
Marine Chandlery: North Shields
Unit G4 Narvik Way
Tyne Tunnel Trading Estate
North Shields NE29 7XJ
United Kingdom
Product Description
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. Bearing sheave of tough composite resists corrosion for a long service life.
Specification:
| Sheave Ø (mm) | 60 mm |
| Sheave Ø (in) | 2 3/8 in |
| Length (mm) | 102 mm |
| Length (in) | 4 in |
| Weight (g) | 265 g |
| Weight (oz) | 9.3 oz |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fasteners (mm) | 8 mm |
| Maximum working load (kg) | 725 kg |
| Maximum working load (lb) | 1600 lb |
| Breaking load (kg) | 1450 kg |
| Breaking load (lb) | 3200 lb |
| A (mm) | 12.5 mm |
| A (in) | 1/2 in |
| B (mm) | 54.5 mm |
| B (in) | 2 5/32 in |
| C (mm) | 60 mm |
| C (in) | 2 3/8 in |
| Height (mm) | 55 mm |
| Height (in) | 2 3/16 in |
| D (mm) | 14 mm |
| D (in) | 9/16 in |
